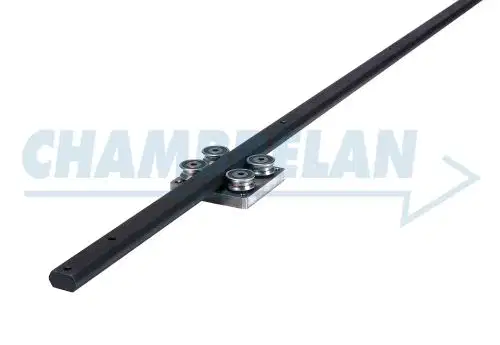

Stainless steel linear rail STV18-BSV18R5 with 5-roller runner

Name: STV18-BSV18R5
SKU: STV18-BSV18R5
Availability: InStock

STV18-BSV18R5

The STV18-BSV18R5 guiding system combines a stainless steel STV18 rail with a BSV18R5 roller runner to meet the needs of industrial applications requiring increased load capacity and excellent performance in severe environments.
Its 304L stainless steel construction makes it perfectly suited to humid, aggressive environments or those subject to intensive cleaning.

Technical sheet Download 3D

Options

STV18-BSV18R3 Standard
STV18-BSV18R5 Standard

Length
patins	Clear

Add to cart / Log in

Ask for a quotation

3D download:

Enable Download

Table of lengths

The characteristics given on this website correspond to standard manufacture or usual requirements. Our position as a manufacturer enables us to offer great flexibility in order to meet the most specific requirements.

Length	Number of pads	Load on major axis	Load on minor axis	Stock	Please select
300 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
300 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
300 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
400 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
400 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
400 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
500 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
500 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
500 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
600 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
600 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
600 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
700 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
700 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
700 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
800 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
800 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
800 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
900 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
900 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
900 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
1000 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
1000 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
1000 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
1100 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
1100 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
1100 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
1200 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
1200 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
1200 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
1300 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
1300 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
1300 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
1400 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
1400 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
1400 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
1500 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
1500 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
1500 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
1600 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
1600 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
1600 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
1700 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
1700 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
1700 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
1800 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
1800 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
1800 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
1900 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
1900 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
1900 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
2000 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
2000 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
2000 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
2100 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
2100 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
2100 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
2200 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
2200 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
2200 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
2300 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--
2300 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--
2300 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--
2400 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--	NC
2400 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--	NC
2400 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--	NC
2500 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--	NC
2500 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--	NC
2500 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--	NC
2600 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--	NC
2600 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--	NC
2600 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--	NC
2700 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--	NC
2700 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--	NC
2700 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--	NC
2800 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--	NC
2800 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--	NC
2800 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--	NC
2900 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--	NC
2900 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--	NC
2900 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--	NC
3000 mm	1	300 kg ~ 662 lbs	166 kg ~ 366 lbs	--	NC
3000 mm	2	600 kg ~ 1323 lbs	332 kg ~ 732 lbs	--	NC
3000 mm	3	900 kg ~ 1985 lbs	498 kg ~ 1098 lbs	--	NC

See other lengths and stock

Applications

This compact linear rail is designed for applications requiring a very small footprint. Its specific geometry limits particle retention and facilitates the evacuation of impurities, contributing to reliable operation in fouling environments. It is particularly suited to applications requiring precise, compact and fast guiding, with high operating speeds, including in repeated cycles. Recommended operating temperatures from -20°C to 80°C. This compact rail was specifically designed for the aerospace industry but is also often used in the food processing sector. It offers several ...

Recommended operating temperatures from -20°C to 80°C.

This compact rail was specifically designed for the aerospace industry but is also often used in the food processing sector.

It offers several advantages:
– ultra-compact
– significantly lightened, meeting decarbonisation challenges

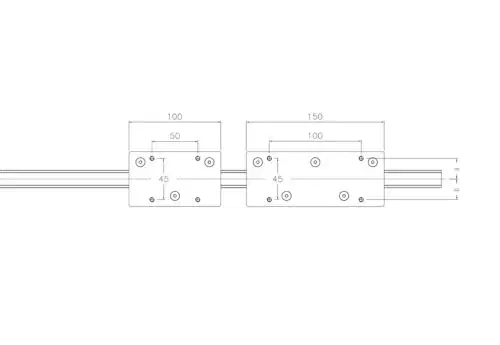

– several runner lengths available (BSV18R3 | BSV18R5)
– flat mounting possible with a maximum load of 166 kg per runner

The STV18 rail can be manufactured in a curved version. Contact us for more information.

Manufacturing

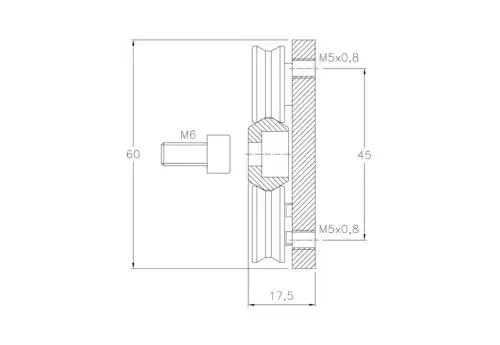

The STV18 rail, of prismatic profile, is made of cold-drawn 304L stainless steel and available up to 2000 mm as standard. Its design limits the build-up of particles and promotes the self-evacuation of impurities, guaranteeing reliable, durable guiding in fouling environments. The BSV18R5 runner, fitted with 5 stainless steel rollers and a stainless steel plate, offers reinforced guiding with better load distribution. The roller guiding ensures quiet operation and allows high operating speeds, including in intensive and continuous use. As standard, rails are supplied ...

The BSV18R5 runner, fitted with 5 stainless steel rollers and a stainless steel plate, offers reinforced guiding with better load distribution.
The roller guiding ensures quiet operation and allows high operating speeds, including in intensive and continuous use.

As standard, rails are supplied undrilled.

Maintenance

The rails are factory-lubricated with a high-pressure bearing grease for optimal service life.
In the case of special conditions (abrasiveness, high cycle rates), regular and systematic maintenance should nonetheless be planned.
The runners must be greased regularly.

Options

Runner options

– Choice of several lengths (BSV18R3: 3 rollers | BSV18R5: 5 rollers)

Temperature

For use above 80°C (HT), please contact us

Modification of the standard

Custom lengths (LG)

Drilling pattern and centre distances on request

Other surface treatments (corrosion, hardness)

Vertical mounting (guillotine type)

For specific projects or particular integrations, the EV18 rail can be supplied curved on request, subject to a defined order volume.
