Sliding rail - Heavy load - Steel - Ball bearing runners

E46-G52

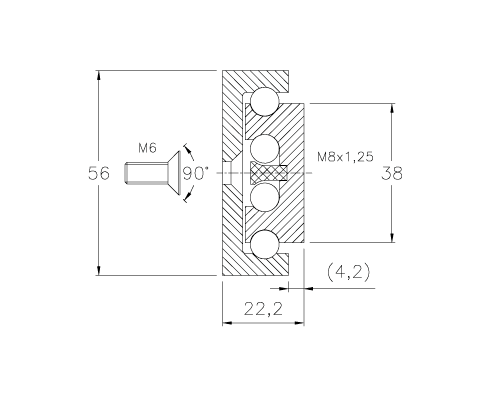

Diagram and dimensions of E46-G52 heavy-duty runner with ball-bearing glides

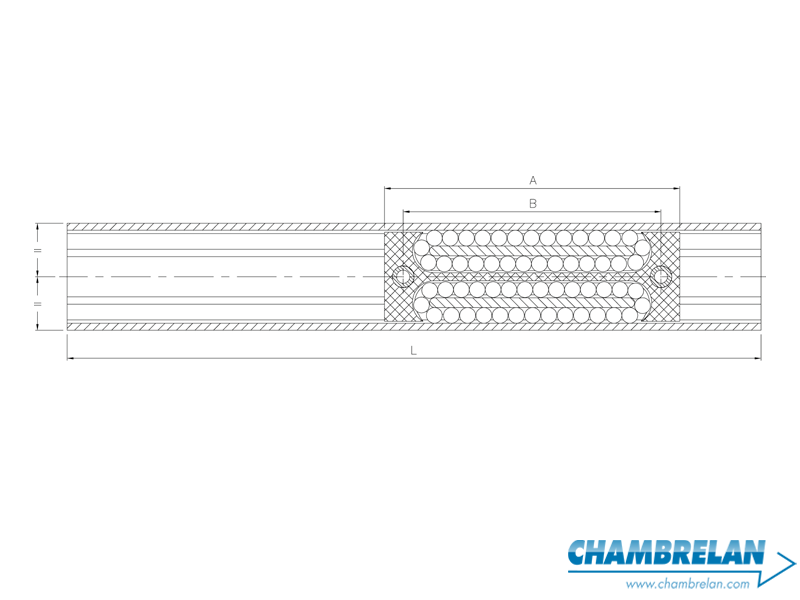

E46-G52 - Image 2

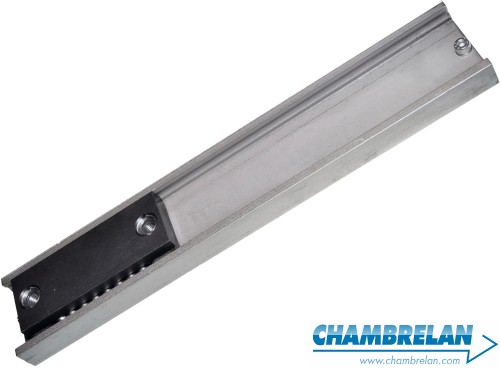

Heavy-duty linear guide with one glide - E46-G52
Steel heavy-duty sliding rail with one shoe
Guide rail with two steel ball bearing blocks - E46-G52

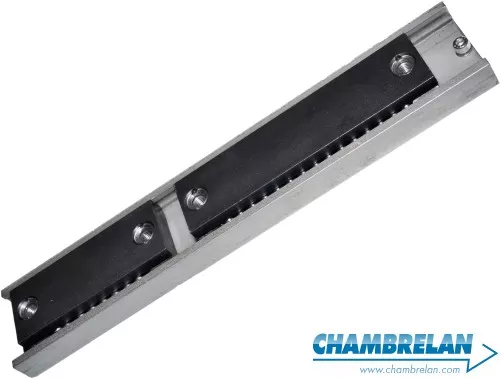

Heavy-duty steel guide rail with two runners - E46-G52

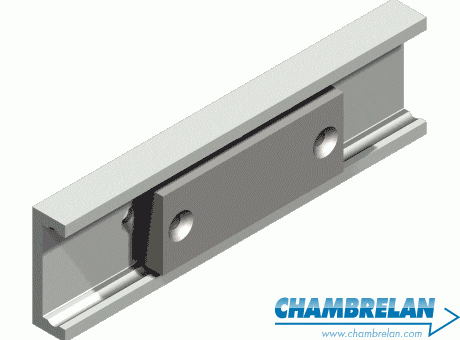

3D view of E46-G52 ball bearing slide rail

This linear guide rail is made of steel. The length is adapted to the user’s needs. It is equipped with one or more runners which are made of hardened steel.

Dados técnicos Descarregar 3D

Opções

Limpar
Adicionar ao cesto / Iniciar sessão
Pedir um orçamento

Descarregamento 3D

Ativar a transferência

Tabela de comprimentos

As caraterísticas indicadas neste produto correspondem à produção padrão ou aos pedidos atuais. Como fabricante, podemos oferecer-lhe uma grande flexibilidade para satisfazer necessidades muito específicas. A Chambrelan pode estudar qualquer pedido relativo a comprimentos de corrediça telescópica, comprimentos de desenvolvimento, furações, diâmetros e distâncias entre centros, bem como opções e acessórios de fixação.
Longueur Nombre de patins Charge à chant Charge à plat Stock Actions
300 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
300 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
300 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
400 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
400 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
400 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
500 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
500 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
500 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
600 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
600 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
600 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
700 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
700 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
700 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
800 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
800 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
800 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
900 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
900 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
900 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
1000 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
1000 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
1000 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
1100 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
1100 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
1100 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
1200 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
1200 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
1200 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
1300 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
1300 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
1300 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
1400 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
1400 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
1400 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
1500 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
1500 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
1500 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
1600 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
1600 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
1600 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
1700 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
1700 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
1700 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
1800 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
1800 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
1800 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
1900 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
1900 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
1900 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
2000 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
2000 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
2000 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
2100 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
2100 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
2100 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
2200 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
2200 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
2200 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
2300 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
2300 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
2300 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
2400 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
NC
2400 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
NC
2400 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
NC
2500 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
NC
2500 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
NC
2500 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
NC
2600 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
NC
2600 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
NC
2600 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
NC
2700 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
NC
2700 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
NC
2700 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
NC
2800 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
NC
2800 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
NC
2800 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
NC
2900 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
NC
2900 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
NC
2900 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
NC
3000 mm1250 kg ~ 552 lbs125 kg ~ 276 lbs--
NC
3000 mm2500 kg ~ 1103 lbs250 kg ~ 552 lbs--
NC
3000 mm3750 kg ~ 1654 lbs375 kg ~ 827 lbs--
NC
Ver outros comprimentos e stock
RG

Aplicações

This linear guide rail is designed for heavy loads in applications requiring a very small footprint, such as small covers or housings for machine protection.
Recommended operating temperatures are -20 to 100°C.
This type of product does not handle torque loads well, so ensure that the load is balanced under one or more pads if necessary.
This product can be used as a translational guide, a guide bar or rod, a hanging rail, a handling rail, a door rail, a horizontal guide rail or as a vertical guide such as a guillotine type guide.

Fabrico

Chambrelan manufactures this guide rail on the basis of cold-drawn stainless steel profiles. The rail is supplied as standard with a white zinc coating, with an average thickness of 12 microns, which offers excellent resistance to salt spray tests. The runner is nitrided. The rail has pinned stops with rubber at each end. The balls are made of 100C6 chrome steel. It is lubricated with standard bearing grease. Chambrelan specialises in the design and manufacture of telescopic ball bearing slides and guide rails for industrial applications: reinforced slides, linear slides, ball bearing ...
Ver mais

Chambrelan manufactures this guide rail on the basis of cold-drawn stainless steel profiles. The rail is supplied as standard with a white zinc coating, with an average thickness of 12 microns, which offers excellent resistance to salt spray tests. The runner is nitrided.
The rail has pinned stops with rubber at each end.
The balls are made of 100C6 chrome steel. It is lubricated with standard bearing grease.

Chambrelan specialises in the design and manufacture of telescopic ball bearing slides and guide rails for industrial applications: reinforced slides, linear slides, ball bearing guides, rolling guides, metal runners in steel, aluminium, stainless steel with locking, blocking and in full extension, partial extension, double stroke or super extension for heavy duty industrial drawers, mechanical panels.

Manutenção

As standard, our slides are delivered lightly greased from the factory. We use a high pressure bearing grease for steel slides, and a white grease for aluminium and stainless steel slides. On request, we can use a food grade grease (clean room compatible), a high temperature grease, a teflon free grease (paint booths) or a greaseless assembly (although we do not recommend this).
A food grade grease, combined with stainless steel balls, offers an economical alternative to all stainless steel slides.

Opções

Manual locking system It does not currently have any internal locking option. Surface treatments Other treatments providing higher resistance are also possible. Please contact us. Nitriding is also possible to increase the service life of the slide during intensive use, or to improve resistance to brinelling in case of strong vibrations. Assembly with stainless steel balls It can be assembled with stainless steel balls to obtain very high corrosion resistance, which in some cases may offer a cost-effective alternative to stainless steel slides. Use at high temperature (oven type) This model ...
Ver mais
Manual locking system

It does not currently have any internal locking option.

Surface treatments

Other treatments providing higher resistance are also possible. Please contact us.
Nitriding is also possible to increase the service life of the slide during intensive use, or to improve resistance to brinelling in case of strong vibrations.

Assembly with stainless steel balls

It can be assembled with stainless steel balls to obtain very high corrosion resistance, which in some cases may offer a cost-effective alternative to stainless steel slides.

Use at high temperature (oven type)

This model can be used in high-temperature environments up to 250°C. However, some adaptations are required:

  • mounting clearance to allow expansion of the elements without blocking the slide
  • use high-temperature grease
  • remove all plastic elements

These adaptations must be carried out in our factory. It is therefore important to notify us when requesting a quotation and to allow for manufacturing lead time.
Zinc plating deteriorates from 120°C; we can propose other solutions.

Standard modification
  • Custom lengths and strokes
  • Custom drilling pattern
  • Other surface treatments (corrosion, hardness)
  • Vertical mounting (guillotine type)
