Sliding rail for door - Steel

Name: E53-BP53
SKU: E53-BP53
Availability: InStock

E53-BP53

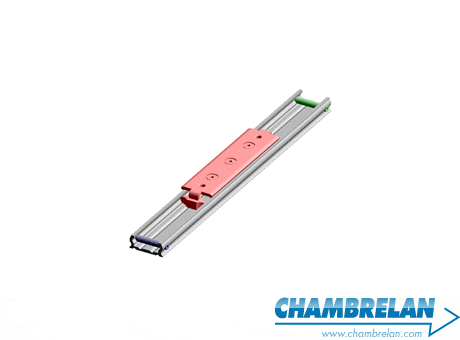

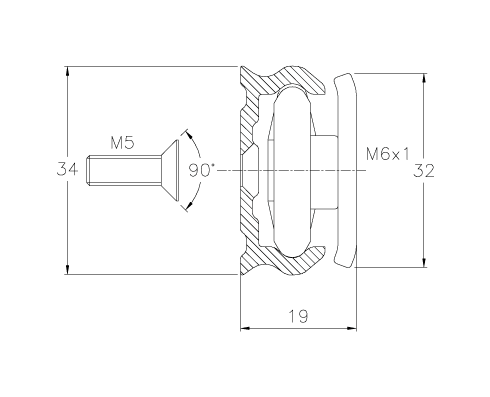

Illustration of a quiet, mild steel linear guide in steel for E53-BP53 doors

E53 - Rail de guidage linéaire avec patin BP53

This linear rail is made of steel. Its length is adapted to the user’s needs, up to 2,500 mm. The standard rail lengths in stock are 500, 1000, 1500 and 2000 mm.

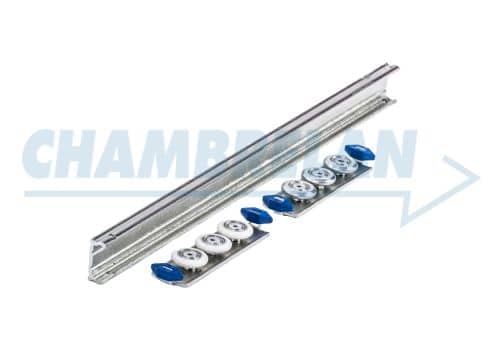

The BP53 runner has 3 plastic-coated steel rollers, mounted on a stainless steel plate. It is supplied with plastic wipers at each end to push large debris out of the raceways.
The assembly provides particularly smooth and quiet linear guiding.

Dados técnicos Descarregar 3D

Opções

D52-BP53 Standard
E53-G53 Standard
E53-G53HT
E53-G57 Standard
E53-G57HT
ST53-GS53 Standard
ST53-GS57 Standard
ST53-BP53 Standard
ST53-BS53 Standard
E53RS-BP53RS Standard
E53RS-BS53RS Standard

Longueur
patins	Limpar

Adicionar ao cesto / Iniciar sessão

Pedir um orçamento

Descarregamento 3D

Ativar a transferência

Tabela de comprimentos

As caraterísticas indicadas neste produto correspondem à produção padrão ou aos pedidos atuais. Como fabricante, podemos oferecer-lhe uma grande flexibilidade para satisfazer necessidades muito específicas. A Chambrelan pode estudar qualquer pedido relativo a comprimentos de corrediça telescópica, comprimentos de desenvolvimento, furações, diâmetros e distâncias entre centros, bem como opções e acessórios de fixação.

Longueur	Nombre de patins	Charge à chant	Charge à plat	Stock	Actions
300 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
300 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
300 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
400 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
400 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
400 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
500 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
500 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
500 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
600 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
600 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
600 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
700 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
700 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
700 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
800 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
800 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
800 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
900 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
900 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
900 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
1000 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
1000 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
1000 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
1100 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
1100 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
1100 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
1200 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
1200 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
1200 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
1300 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
1300 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
1300 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
1400 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
1400 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
1400 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
1500 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
1500 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
1500 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
1600 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
1600 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
1600 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
1700 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
1700 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
1700 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
1800 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
1800 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
1800 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
1900 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
1900 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
1900 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
2000 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
2000 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
2000 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
2100 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
2100 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
2100 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
2200 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
2200 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
2200 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
2300 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--
2300 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--
2300 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--
2400 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--	NC
2400 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--	NC
2400 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--	NC
2500 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--	NC
2500 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--	NC
2500 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--	NC
2600 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--	NC
2600 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--	NC
2600 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--	NC
2700 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--	NC
2700 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--	NC
2700 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--	NC
2800 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--	NC
2800 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--	NC
2800 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--	NC
2900 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--	NC
2900 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--	NC
2900 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--	NC
3000 mm	1	75 kg ~ 166 lbs	40 kg ~ 89 lbs	--	NC
3000 mm	2	150 kg ~ 331 lbs	80 kg ~ 177 lbs	--	NC
3000 mm	3	225 kg ~ 497 lbs	120 kg ~ 265 lbs	--	NC

Ver outros comprimentos e stock

Aplicações

This linear rail is designed for medium loads in applications requiring a very compact footprint, such as small covers or housings for protection on machinery. The load is the maximum force that can be supported per runner. This type of product does not tolerate well loads that subject it to torque. As far as possible, the load should therefore be centred, or a second runner used to cancel out this torque. Please refer to the technical data sheets for exact values. The maximum speed for linear rails is 0.5 m/s. This product can be used as a translation guide, guide bar or rod, suspended ...

Ver mais

This linear rail is designed for medium loads in applications requiring a very compact footprint, such as small covers or housings for protection on machinery.

The load is the maximum force that can be supported per runner. This type of product does not tolerate well loads that subject it to torque. As far as possible, the load should therefore be centred, or a second runner used to cancel out this torque.
Please refer to the technical data sheets for exact values.

The maximum speed for linear rails is 0.5 m/s.

This product can be used as a translation guide, guide bar or rod, suspended rail, handling rail, door rail, horizontal sliding rail, or vertical guiding as for a guillotine-type mechanism.

Fabrico

The E53 rail is made of drawn steel. All the rails we ship are supplied with an anti-corrosion treatment. Additional surface treatments are available. The rail is fitted with rubber-covered pin-type stops at each end. They are designed to serve as end-of-travel stops. If adding stops, care should be taken not to strike the plastic part of the runner. Runner adjustment and setting: The rail-and-runner system is supplied assembled with minimal play and optimal rolling properties. We supply a set of rails and runners assembled and therefore pre-set. If a runner is supplied separately, or if it ...

Ver mais

The E53 rail is made of drawn steel. All the rails we ship are supplied with an anti-corrosion treatment. Additional surface treatments are available.

The rail is fitted with rubber-covered pin-type stops at each end. They are designed to serve as end-of-travel stops. If adding stops, care should be taken not to strike the plastic part of the runner.

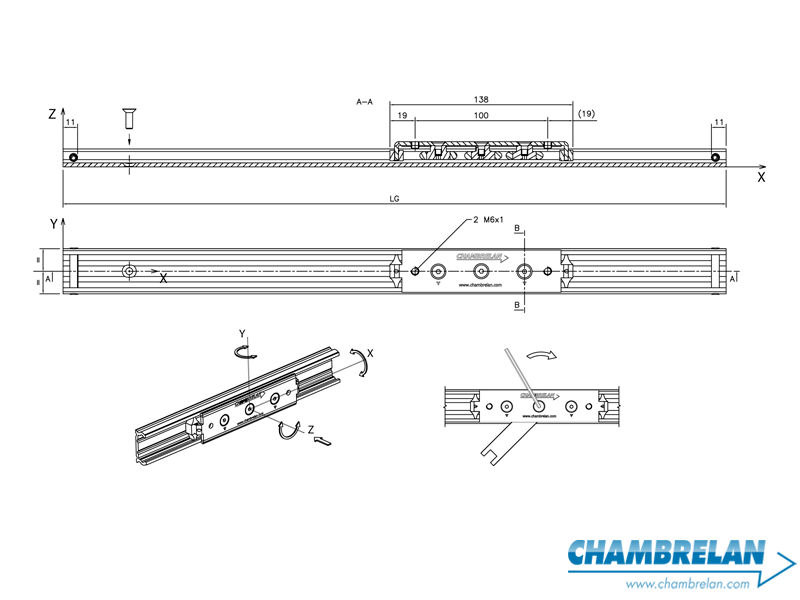

Runner adjustment and setting:
The rail-and-runner system is supplied assembled with minimal play and optimal rolling properties.
We supply a set of rails and runners assembled and therefore pre-set. If a runner is supplied separately, or if it has to be fitted in another rail, or if you have non-standard operating requirements, an adjustment can be carried out. Note that correct adjustment of the runner determines the service life of the assembly.

after checking that the raceways are clean, insert the runner without the wiper into the rail

loosen the adjustment screw of the centre roller, which is mounted on the eccentric,

with the rail resting on its edge, turn it using the supplied wrench to obtain the desired setting, then tighten the fixing screw to the torque recommended on the technical data sheet.

check that the runner slides freely in the rail. The runner must be able to move freely without excessive play.

refit the wipers.

Chambrelan specialises in the design and manufacture of ball-bearing telescopic slides and linear rails for industrial applications: reinforced slides, linear slides, ball rails, roller guiding, metal runners in steel, aluminium and stainless steel with locking, blocking, and full extension, partial extension, double travel or super extension versions for heavy-duty industrial drawers and mechanical panels.

Manutenção

The rails are factory-lubricated with a high-pressure bearing grease for optimal service life.
In the case of special conditions (abrasiveness, high cycle rates), regular and systematic maintenance should nonetheless be planned.
The runners must be greased regularly.

Opções

Use at high temperature (oven-type)

Recommended operating temperatures from -20°C to 80°C. For use above 80°C (HT), please contact us.

Modification of the standard

Custom lengths: we supply maximum lengths of 2 m. Rails can be mounted end-to-end to achieve greater lengths.

Custom drilling pattern

Other surface treatments (corrosion, hardness)

For vertical mounting, please contact us
